高温恒温实验箱 TK-GH

设备型号:TK-GH系列

设备特点: 电子,电工,仪表,材料,半导体等生产企业对元器件进行干燥,烘焙及热处理试验。学校,医药、食品、化工等单位科研及对非易爆物进行干燥、消毒、保湿及热处理试验。

高温恒温实验箱 TK-GH

Description

高温恒温实验箱

产品用途:



1、电子,电工,仪表,材料,半导体等生产企业对元器件进行干燥,烘焙及热处理试验。

2、学校,医药、食品、化工等单位科研及对非易爆物进行干燥、消毒、保湿及热处理试验。

3、特别适用于LED,LCD在英晶体,电容,电阻,等要求高恒精度和可靠性的产品过程的烘干和老化试验。



1、Electronic electrical, instrumentation, materials, semiconductor and manufacturing enterprises for the component drying, roasting and heat treatment test.

2、School, medicine, food, chemical industry and other filed for the nonflammable-explosive drying, disinfection, moisture and heat treatment.

3、Can use on LED LCD of the crystal, capacitor, resistor, and other high requirements precision, the product reliability of drying and aging test.



产品介绍:



1、采用RKC高精度控制器,按上下键即可输入参数,设定方便简单,也可配置具有多段控制程序编程控制仪,客户可设定任意的温度段进行温度测试。

2、温控器控温的同时可选配温度无纸记录仪,这样就具有了记录温度曲线功能,记录仪具有USB接口和232接口,数据可上传电脑,进行数据分析及曲线打印和用 EXCEL文档打印温度值。

3、箱体内胆采用进口高级不锈钢(SUS304)镜面板,箱体外胆采用A3钢板喷塑或SUS304不锈钢板,增加了外观质感和洁净度。

4、特殊设计的送风循环系统和出风口能够保证工作温度分布的均匀度。

5、独特的立式设计,使箱体结构合理,占地面积小,有效利用空间。

6、多重保护装置,无熔丝开关,过流保护,漏电保护,第一次超温报警,第二次超温切电。



1、Using high-precision controller RKC, press up and down keys can input parameters, convenient and easy to set, also can configurable more control programming control instrument.

2、When the temperature controller control the temperature we can use paperless recorder attained record temperature curve.The recorder is USB and 232 interface, data can be uploaded as well as to analytic the data, curve type, and use EXCEL document type the date of temperature.

3、Inner material is high quality stainless mirror plane outer material use A3 stainless spray plastic/SUS304steel plate to add the appearance quality and cleanliness.

4、Supply air circulation system and the outlet are specially designed, can guarantee working temperature distribution uniformity.

5、It has small volume and large use space and unique vertical design, make the structure reasonable.

6、Multiple protection devices, no fuse switch,over-current protection, leakage protection, over temperature alarm for the first time, and over temperature of second time will cut electricity.

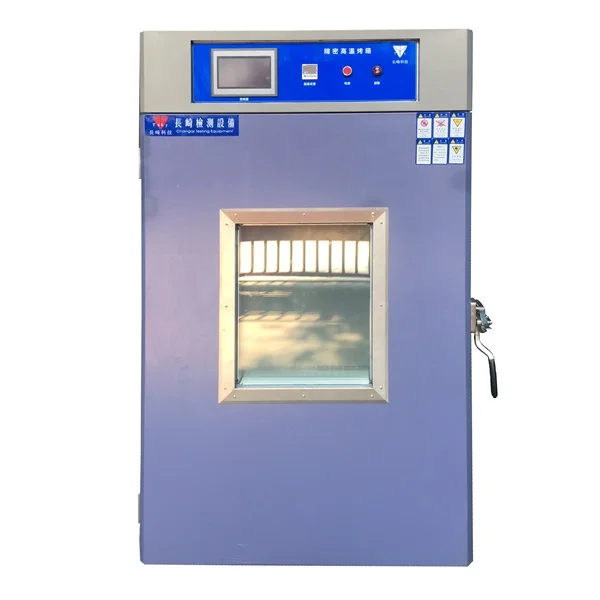

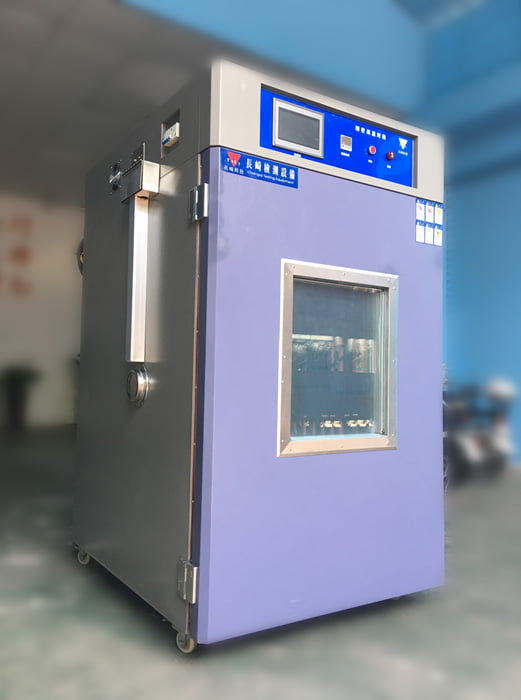

产品实拍图:

高温恒温实验箱

高温恒温实验箱

高温恒温实验箱
